Yantai Xutai Tshiab Zog Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg uas tsis siv neeg tu hnub ci txoj kev teeb 200w nyob rau hauv Suav teb, featured los ntawm cov khoom zoo thiab cov kev pab zoo. Nrog kev paub dhau los, peb zoo siab tos txais koj los yuav tsis siv neeg tu hnub ci txoj kev teeb 200w ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.
Product Overview

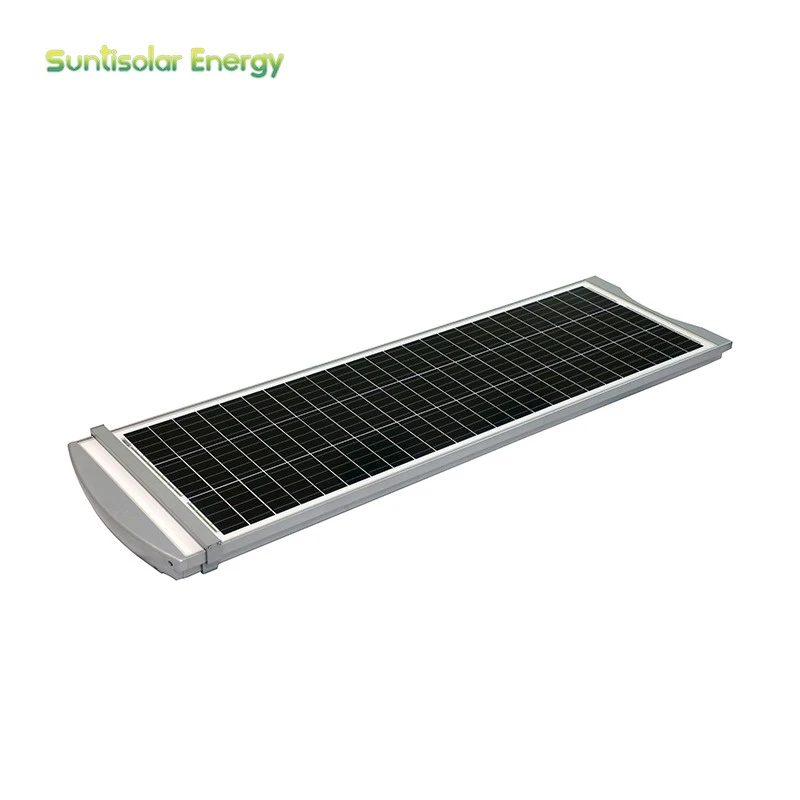

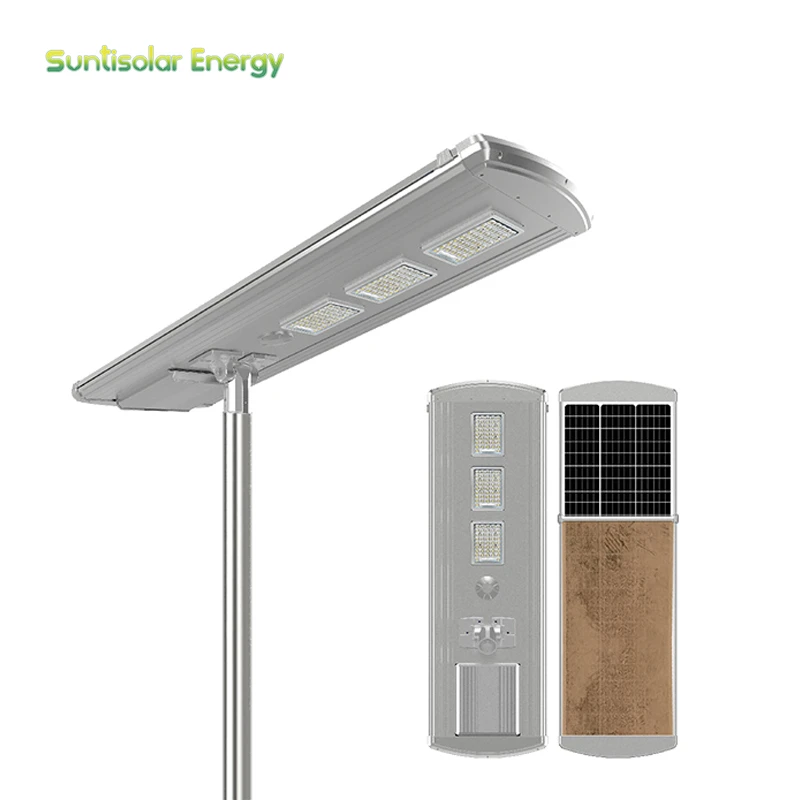

200W Tsis siv neeg tu lub hnub ci txoj kev teeb yog peb qhov kev qhia nkag qib qauv rau txoj kev loj, lub teeb ci luminary 24,000lm, tuaj yeem ntsia tau rau ntawm 10-13m qhov siab ncej.

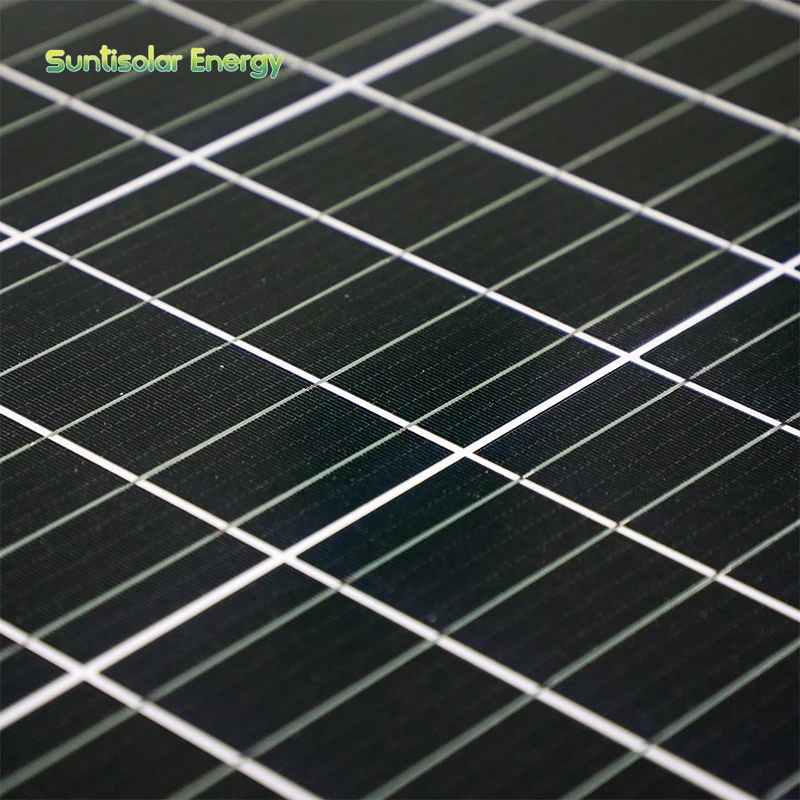

Topcon hnub ci vaj huam sib luag 260W nrog 23% pauv tus nqi saws.
Ua hauj lwm 12 teev tsis dimming thiab 3 hnub rov qab.
Cov qauv no yog tsim rau 2 mus rau 3 txoj kab kev loj.
Khoom zoo
01.
Ob lub mounting bracket lub kaum ntse ntse thiab LED Module lub kaum sab xis yog kho tau los ua kom lub hnub ci vaj huam sib luag them nyiaj ntau tshaj. Ntxiv rau qhov tsis siv neeg tu muaj nuj nqi, kev them nyiaj ua haujlwm yuav khaws 100% txawm tias siv sijhawm ntev. Raws li kev sib piv, lub hnub ci kev them nqi hluav taws xob tsis tu ncua yuav qis dua nrog rau lub sijhawm mus, tshwj xeeb hauv cov xuab zeb hnyav thiab plua plav.
02.
Kev xaiv ntse ntse system tuaj yeem paub cov chaw taws teeb tshuaj xyuas thiab tswj lub teeb los ntawm mobile app lossis khoos phis tawj lub vev xaib.
03.
Tag nrho cov ntaub ntawv raug xaiv thiab pom zoo kom haum rau qhov kub thiab txias ib puag ncig.
Technical Parameters
|
Qauv |
XT1968SELD200-SC |
|
|

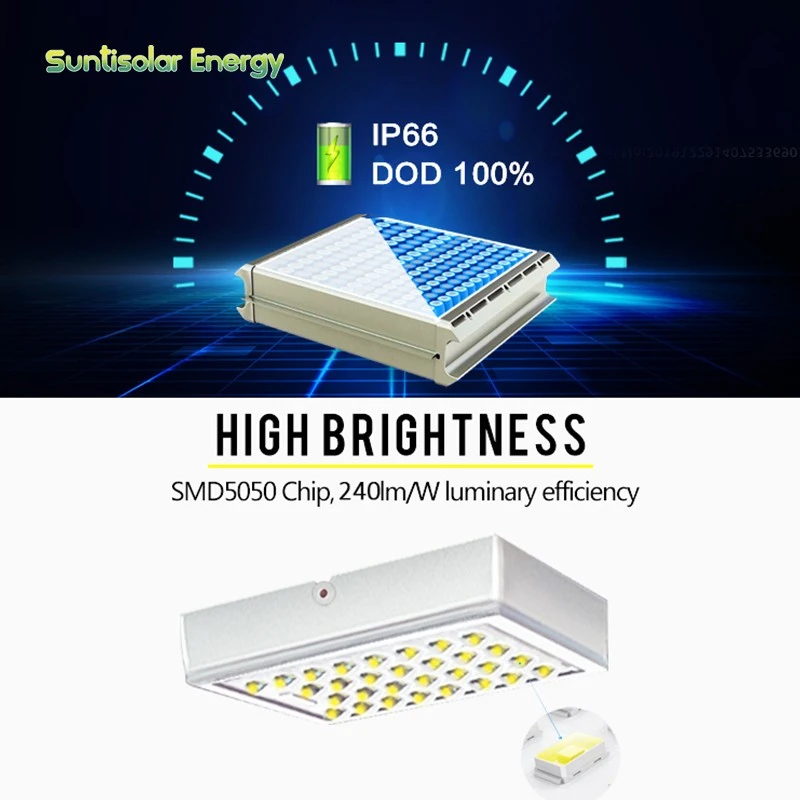

LED Quantity |
40 TSI 5050 |
|
|
Module Quantity (pcs) |
3 |
|
|
Hwj chim |
200W |
|
|
Hnub Ci Vaj Huam Sib Luag |
Monocrystalline Silicon ntawm 36V / 260W |
|
|
Roj teeb |
LiFe PO4 Lithium roj teeb 60Ah / 25.6V ({3}}Wh) |
|
|
Kho lub kaum sab xis ntawm Module (± 15 degree) |
Yog lawm |
|
|
Tswj hom |
Lub Teeb Tswj + Lub Sijhawm Tswjhwm |
|
|
Lub sijhawm ua haujlwm nyob rau hauv lub zog tag nrho |
12h |
|
|
Lub sijhawm ua haujlwm nyob rau hauv kev tswj fais fab ntse |
84h |
|
|
Lub sijhawm them nyiaj (1,000W / m2) |
6h |
|
|
Ntawm -tawm theem pib |
ntawm Tsawg dua lossis sib npaug rau 8LUX, OFF Ntau dua lossis sib npaug rau 10LUX |
|
|
Khoom siv rau kev faib cov teeb pom kev zoo |
PC |
|
|
Beam Angle |
C0 ~ 180 150℃/ T90 ~ 270 80 degree |
|
|
Qib tiv thaiv |
IP66 |
|
|
Tus kheej -kev ua haujlwm huv |
||
|
Tus kheej -Kev ntxuav ua haujlwm zaus |
Txhua 12 teev (yuav tsum tau Customized) |
|
|
Photoelectric Parameter |
||
|
Xim kub (K) |
3,000-6,500K Yeem |
|
|
CRI (Ra) |
70 |
|
|
Lumens (lm) |
24,000-28000 hli |
|
|
Hom ntse |
Yog lawm |
|
|
Ua hauj lwm hauv qab hnub los nag |
7 mus rau 10 hnub |
|
|
Pob |
||
|
Net nyhav |
45kg ± 5% |
|
|
Qhov hnyav tag nrho |
95kg ± 5% (2pcs / thawv) |
|
|
Khoom Dimension |
1,968 * 708 * 122mm ± 5% |
|
|
Pob Dimension |
1,993 * 285 * 755mm ± 5% |
|
|
Kom muaj nuj nqis hauv 40 Feet Thawv |
100/288 pcs |
|
|
Kev teeb tsa |
||
|
Txoj kab uas hla ntawm Ncej |
Ø 89 mm |
|
|
Ntsia Hlau Fixation |
YOG |
|
|
Cua tiv taus theem (km / h) |
209 |
|
|
Installation Qhov siab (m) |
10-13 |
|
|
Installation nrug (m) |
30-45 |
|
|
Irradiation cheeb tsam (m2): |
630 |
|

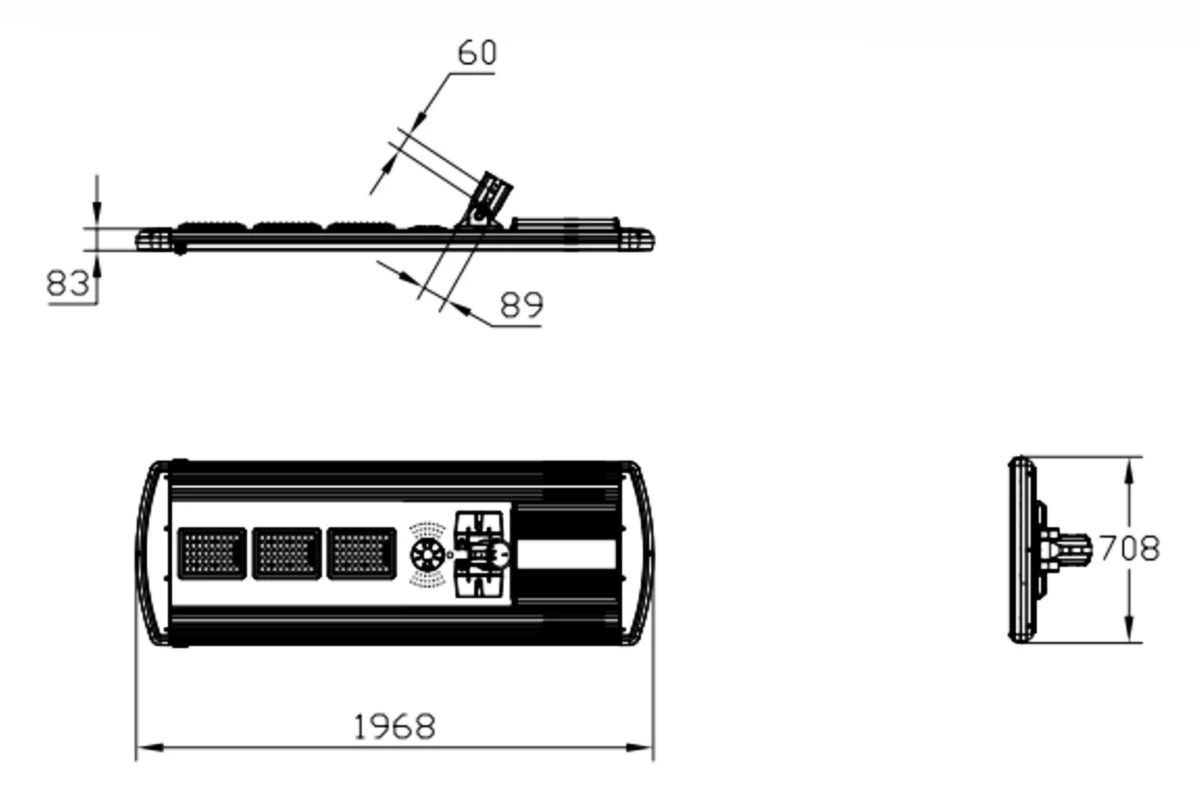

Khoom Dimension (mm)

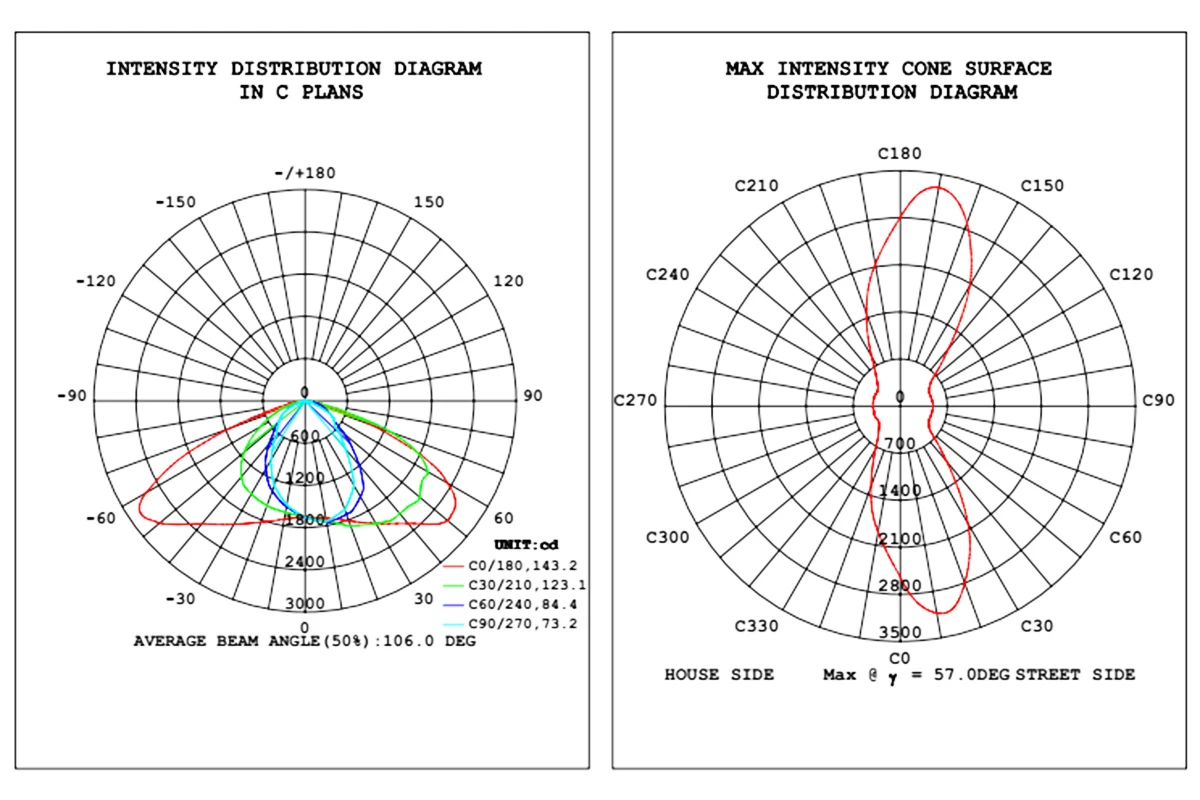

Distribution Diagram
Txhim kho nyhuv

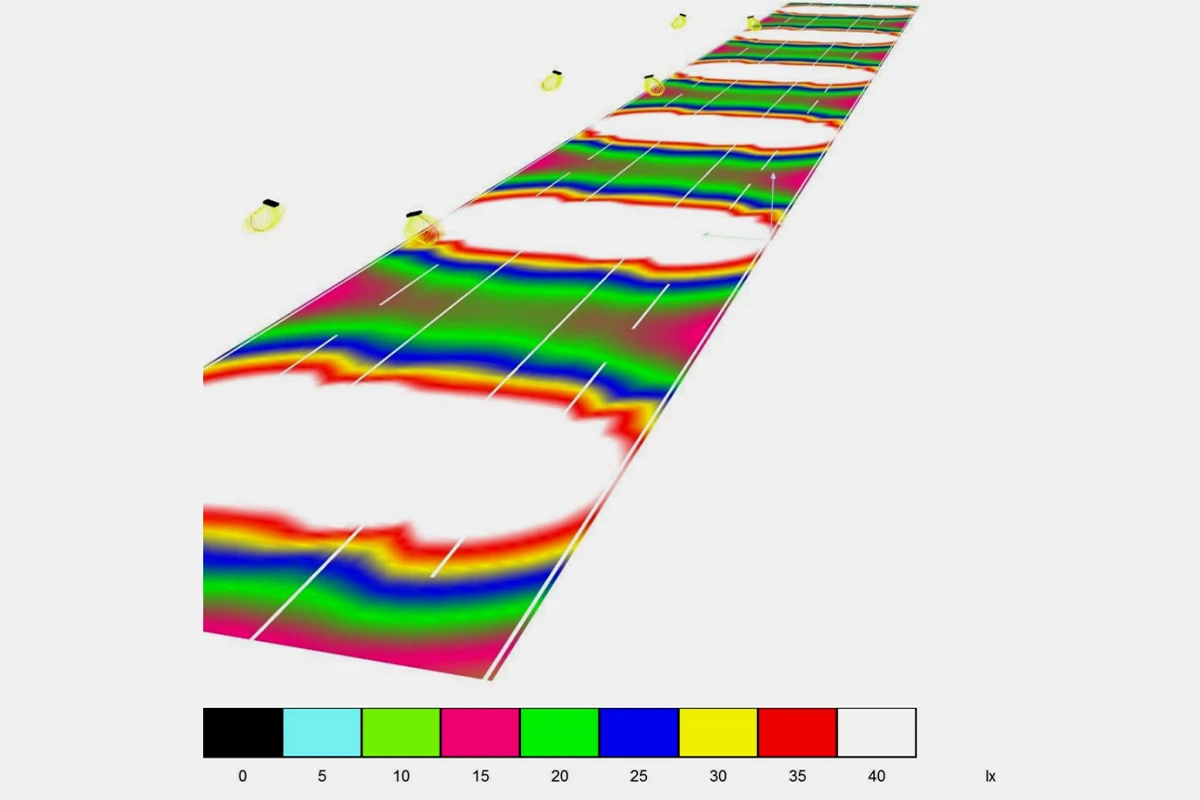

200W Tsis siv neeg tu hnub ci txoj kev teeb Dialux

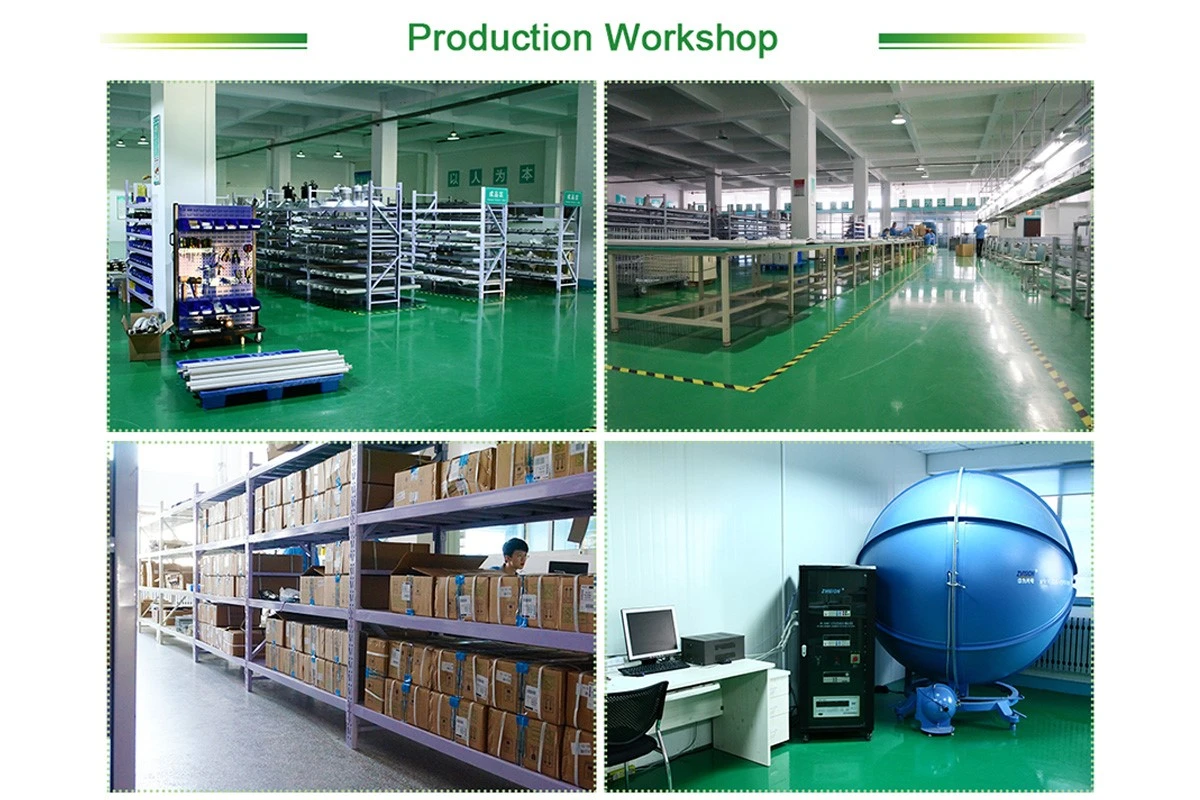

Tuam txhab nthuav qhia
Founded hauv 2010, Suntisolar yog tsom rau Solar Street Light Research thiab Tsim. Nyob rau hauv 16 xyoo dhau los, peb tau ua tiav qhov muaj zog tshaj plaws thiab ci ntsa iab Tag Nrho Hauv Ib Lub Hnub Ci Txoj Kev Teeb, Tsis Siv Neeg Ntxuav Hnub Ci Txoj Kev Teeb thiab Hnub Solar Street Teeb.
Peb cov khoom tau raug ntsia hauv ntau tshaj 40 lub teb chaws ntawm Asia, America, Africa thiab Middle East lub teb chaws. Raws li nws cov qauv tsim thiab zoo, peb cov khoom tsim tau raug coj los ua National Standard of Solar Street Light rau tsoomfwv cov haujlwm hauv qee lub tebchaws.
Suntisolar Hnub Ci Txoj Kev Teeb yog nplooj siab los muab cov kev daws teeb meem zoo tshaj plaws rau tsoomfwv Cov Haujlwm ntawm Hnub Ci Txoj Kev Teeb.
FAQ
Lub tshuab ntxuav tsis siv neeg ua haujlwm li cas?
Teb: Lub kaw lus siv cov txheej txheem nyuaj tab sis pom zoo siv thiab cov roj hmab kub resistant los ntxuav lub hnub ci vaj huam sib luag tsis tu ncua thiab ua kom cov nqi them nqi zoo ib yam li hnub 1st installation.
Nws puas ua haujlwm nyob rau hauv huab cua thiab nag hnub?
Yog lawm, lub tshuab ntxuav tuaj yeem ua haujlwm nyob rau hauv cov hnub los nag tsis tu ncua.
Puas yog lub tshuab ntxuav tsis siv neeg xav tau kev saib xyuas tsis tu ncua?
Tsis xav tau, nws yog Zero txij nkawm hauv 5 xyoos. Tom qab 5 xyoos, nws yuav tsum tau hloov cov roj hmab, tab sis kuj hloov tau yooj yim.
Puas yog lub tshuab ntxuav tsis siv neeg tuaj yeem hloov kho?
Yog lawm qhov kev ntxuav zaus tuaj yeem kho raws li koj xav tau. Tib lub sijhawm, kev ntxuav zaus tuaj yeem hloov kho los ntawm cov chaw taws teeb tswj txhua lub sijhawm.
