Yantai Xutai Tshiab Zog Technology Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm 100w hnub ci txoj kev teeb nrog tsis siv neeg tu system nyob rau hauv Tuam Tshoj, featured los ntawm cov khoom zoo thiab cov kev pab zoo. Nrog kev paub dhau los, peb zoo siab tos txais koj los yuav 100w hnub ci txoj kev teeb nrog tsis siv neeg tu tshuab ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.
Product Overview

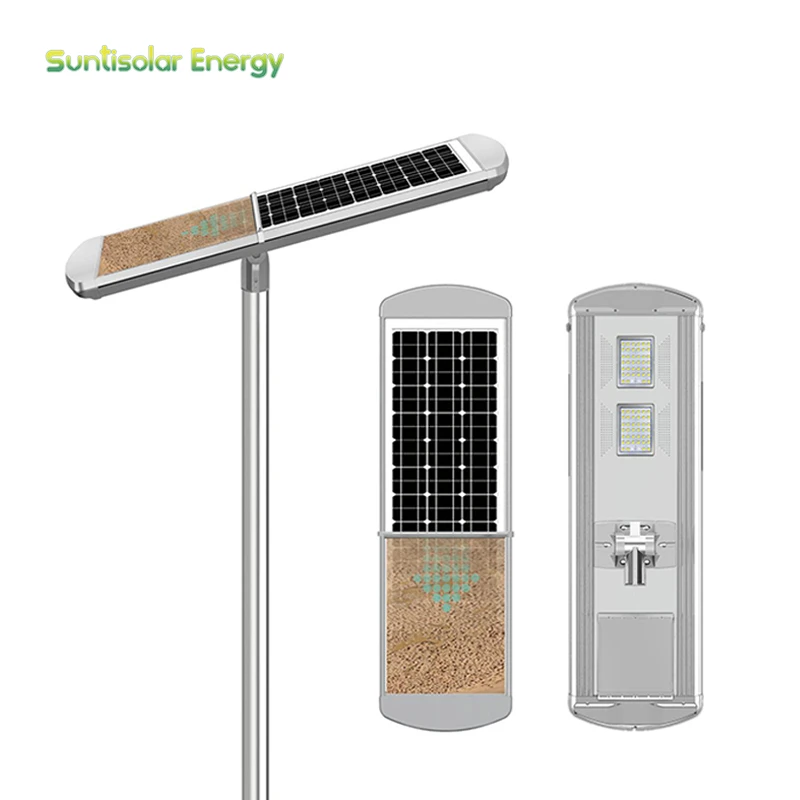

100W Hnub Ci txoj kev teeb nrog tsis siv neeg tu qhov system yog qhov ua tau zoo tshaj plaws nyob rau hauv ib qho kev daws teeb meem sab nraum zoov tsim los rau kev ua haujlwm siab tshaj plaws, ua haujlwm ntev, thiab xoom txij nkawm. Sib txawv ntawm cov hnub ci txoj kev teeb pom kev zoo, lub kaw lus no muaj qhov tsis siv neeg tu tshuab rau lub hnub ci vaj huam sib luag, uas tau lees tias lub hnub ci vaj huam sib luag tuaj yeem ua kom zoo tshaj plaws txawm tias nyob hauv plua plav, xuab zeb, lossis qhov chaw muaj kuab paug.
Qib A dynamic Lithium roj teeb yog tsim los ntawm 25.6V high voltage system, qhov no yuav paub me me tam sim no kom ncav cuag lub zog ua haujlwm siab, txo lub nra hnyav, nce kev ua haujlwm thiab lub neej ntev.
Khoom Zoo
01.
Lub hnub ci vaj huam sib luag tau txais kev ntxuav kom lav qhov kev them nqi siab tsis muaj kev cuam tshuam los ntawm kev ua haujlwm ib puag ncig.
02.
Kev ntxuav 150W hnub ci vaj huam sib luag them nqi hluav taws xob yog sib npaug rau 200W hnub ci vaj huam sib luag tsis tau ntxuav.
03.
Mounting bracket lub kaum sab xis yog 180 degrees adjustable, LED module yog 15 degrees adjustable. Qhov no yuav lav lub vaj huam sib luag lub kaum ntse ntse ua rau lub hnub thiab ua kom lub zog them nyiaj ntau dua.
Technical Parameters
|
Qauv |
XT1683SELD100-SC |
|
|
LED Quantity |
40 TSI 5050 |
|
|
Module Quantity (pcs) |
2 |
|
|
Hwj chim |
100W |
|
|
Hnub Ci Vaj Huam Sib Luag |
Monocrystalline Silicon ntawm 36V / 150W |
|
|
Roj teeb |
Qib A Dynamic LiFe PO4 lithium roj teeb ntawm 30Ah / 25.6V (=768Wh)
|
|
|
Kho lub kaum sab xis ntawm Module (± 15 degree) |
Yog lawm |
|
|
Tswj hom |
Lub Teeb Tswj + Lub Sijhawm Tswjhwm |
|
|
Lub sijhawm ua haujlwm nyob rau hauv lub zog tag nrho |
12h |
|
|
Lub sijhawm ua haujlwm nyob rau hauv kev tswj fais fab ntse |
84h |
|
|
Lub sijhawm them nyiaj (1,000W / m2) |
6h |
|
|
Ntawm -tawm theem pib |
ntawm Tsawg dua lossis sib npaug rau 8LUX, OFF Ntau dua lossis sib npaug rau 10LUX |
|
|
Khoom siv rau kev faib cov teeb pom kev zoo |
PC |
|
|
Beam Angle |
C0 ~ 180 150℃/ T90 ~ 270 80 degree |
|
|
Qib tiv thaiv |
IP66 |
|
|
Tus kheej -kev ua haujlwm huv |
||
|
Tus kheej -Kev ntxuav ua haujlwm zaus |
Txhua 12 teev (yuav tsum tau Customized) |
|
|
Photoelectric Parameter |
||
|
Xim kub (K) |
3,000-6,500K |
|
|
CRI (Ra) |
70 |
|
|
Lumens (lm) |
12,000-14,000 lm |
|
|
Hom ntse |
Yog lawm |
|
|
Ua hauj lwm hauv qab hnub los nag |
7 mus rau 10 hnub |
|
|
Pob |
||
|
Net nyhav |
32kg ± 5% |
|
|
Qhov hnyav tag nrho |
65kg ± 5% (2pcs / thawv) |
|
|
Khoom Dimension |
1,683 * 548 * 86 hli ± 5% |
|
|
Pob Dimension |
1,700 * 252 * 590mm ± 5% |
|
|
Kom muaj nuj nqis hauv 20/40 Feet Thawv |
192/504 TSI |
|
|
Kev teeb tsa |
||
|
Txoj kab uas hla ntawm Ncej |
Ø 89 mm |
|
|
Ntsia Hlau Fixation |
YOG |
|
|
Cua tiv taus theem (km / h) |
209 |
|
|
Installation Qhov siab (m) |
9-10 |
|
|
Installation nrug (m) |
27-30 |
|
|
Irradiation cheeb tsam (m2): |
300 |
|
Khoom Dimension (mm)
100W Dialux Simulation-10m
Tuam txhab Taw Qhia
Suntisolar yog ib tus kws tshaj lij rau tsoomfwv txoj haujlwm siv lub zog hluav taws xob hnub ci txoj kev teeb pom kev zoo, tshwj xeeb hauv kev txhim kho thiab kev tshawb fawb ntawm lub hnub ci txoj kev muaj zog thiab ci ntsa iab. Hauv 16 xyoo dhau los, peb tau hloov kho peb lub hnub ci txoj kev teeb tsim rau tiam 7th. Tsis tas li ntawd, peb tau ua tiav kev tsim lub hnub ci txoj kev teeb nrog lub tshuab ntxuav tsis siv neeg thiab lub hnub taug qab hnub ci txoj kev teeb.
Peb txoj kev vam meej pib los ntawm kev tsim kho tshiab ntawm cov khoom, thiab ntau ntxiv los ntawm cov lus siab ntawm peb cov neeg siv khoom. Ntau tus neeg muas zaub tau hais tias Suntisolar txoj kev teeb yog qhov No.1 hauv kev lag luam. Qhov no yeej ib txwm yog vim li cas rau peb insist ntawm high quality.
Peb mob siab rau ua tus No.1 hnub ci txoj kev teeb chaw tsim tshuaj paus nyob rau hauv lub ntiaj teb no.
FAQ
Muaj ib lub tshuab ntxuav uas siv los ntawm lub hnub ci vaj huam sib luag. Piv nrog rau qhov no, qhov twg zoo dua?
Muaj teeb meem rau ib qho uas siv los ntawm lub vaj huam sib luag cais, lub vaj huam sib luag cais tsis tuaj yeem ntxuav. Yog li tom qab lub sijhawm ntev dua, kev ua haujlwm tu yuav tsis ua haujlwm. Dhau li ntawm qhov sib txawv ntawm cov khoom siv hluav taws xob, kev tsim kho tshuab sab hauv yog qhov sib txawv kiag li, peb cov khoom siv tshuab yog qhov nyuaj dua tab sis txhim khu kev qha rau lub sijhawm siv ntev. Yog xav paub ntxiv, thov hu rau peb.
Cov xim kub yog dab tsi?
Los ntawm 2200K txog 7000K, xim kub tuaj yeem hloov kho.
Koj puas ua OEM?
Yog lawm peb tuaj yeem kho cov khoom thiab ntxiv koj lub tuam txhab logo.
MOQ rau OEM yog dab tsi?
100 units
